ADA-Compliant Grating

Founded in 1977, Morgan’s Welding manufactures custom heavy-duty and light-duty grating for municipal applications. Our grating is customized to meet application needs, including ADA compliance, and manufactured in America.

Specs

Construction Welded
Spacing 1/4” to 1/2”
Material Carbon Steel
Bearing Bar Thickness 3/8” or 1/4”
Finishes Hot-Dip Galvanized, Serrated (optional)
Length Up to 8 ft.

ADA Requirements

For grating to be ADA-compliant, it must meet two primary requirements:
  • Opening must not exceed 1/4” (without treatment) or 1/2” (with a beveled edge) to ensure wheelchairs and other equipment don’t get stuck.
  • Openings have to be oriented perpendicular to the primary direction of travel.

Common Applications

Walkways
Platforms
Sidewalks
Tree Grates
Drainage
Ramps
Entry Grates
Pool Decks
Stair Treads
Loading Docks

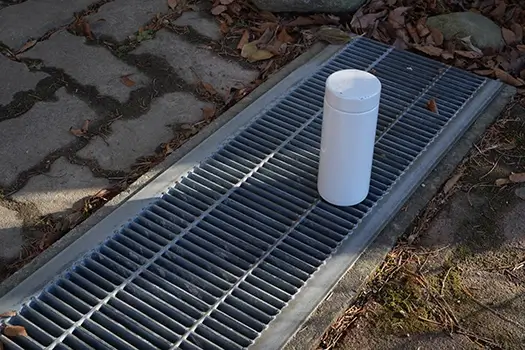

A white container sits on a grate in the ground. The container is empty and the grate is dirty

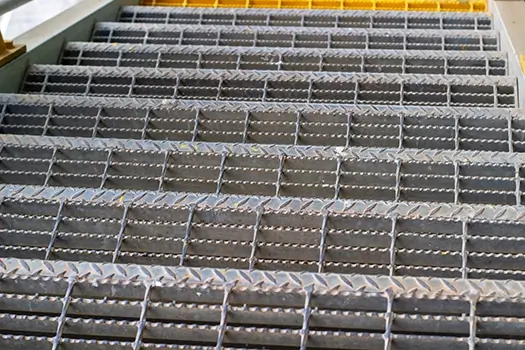

Metal grate stairs. Industrial architecture detail. Safety flooring

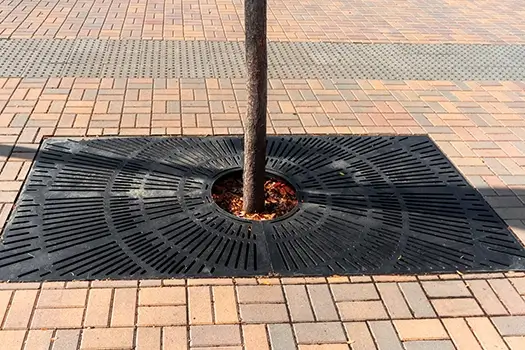

Metal grate for tree in a city walkway

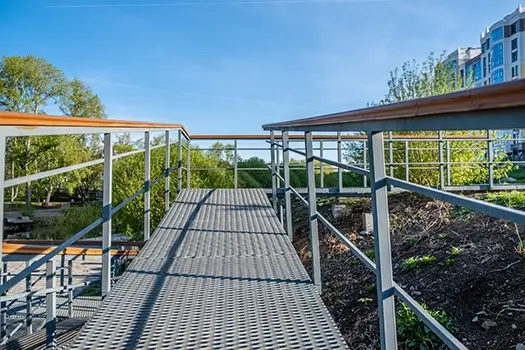

A walkway with a railing and a metal lattice floor.

Specifying Your Grating

Please let our team know:
  • If the grating is being installed on a sloped surface
  • How and where the grating will be installed
  • Desired opening size (1/4” or 1/2”)
  • Surface texture requirements

Let’s Start Discussing Your Municipal Based Project

Don’t hesitate. Take the next step to work with Morgan’s Welding to build your custom grate and frame solution.

Get a Quote
